SPECIFICATIONS



Usage: other

Power Type: Petrol / Gas





Specification

Power Model: 44-5F

Rated Speed: 6500-7000r/min

Power form: Air-cooled Two-stroke (Single-cylinder Gasoline Engine)

Displacement: 52cc

Fuel Ratio: The Mixing Ratio of No. 93 Gasoline and Engine Oil Is 25:1

Power: 1.65KW

Carburetor Type: Diaphragm Type

Blade: 4 Pieces

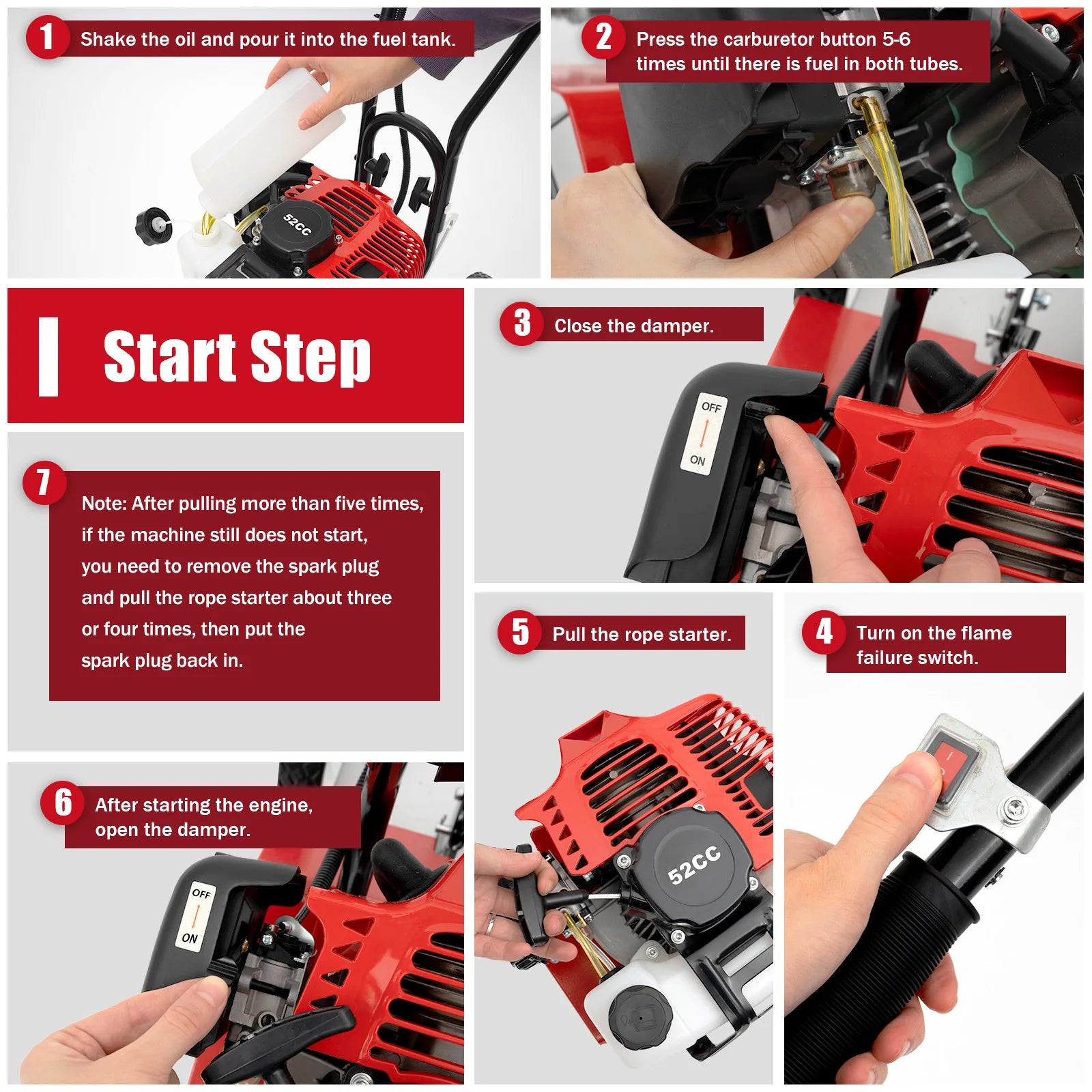

Start Mode: Pull Start

Engine Net Weight: 4.5kg/10lbs

Gross Weight: 14.85kg/32.74lbs

Net Weight: 13.69kg/30.18lbs

Blade Diameter: 22.5cm/8.86inch

Tillage Width: 30cm/11.81inch

Tillage Depth: 3- 10cm/1.18-3.94inch

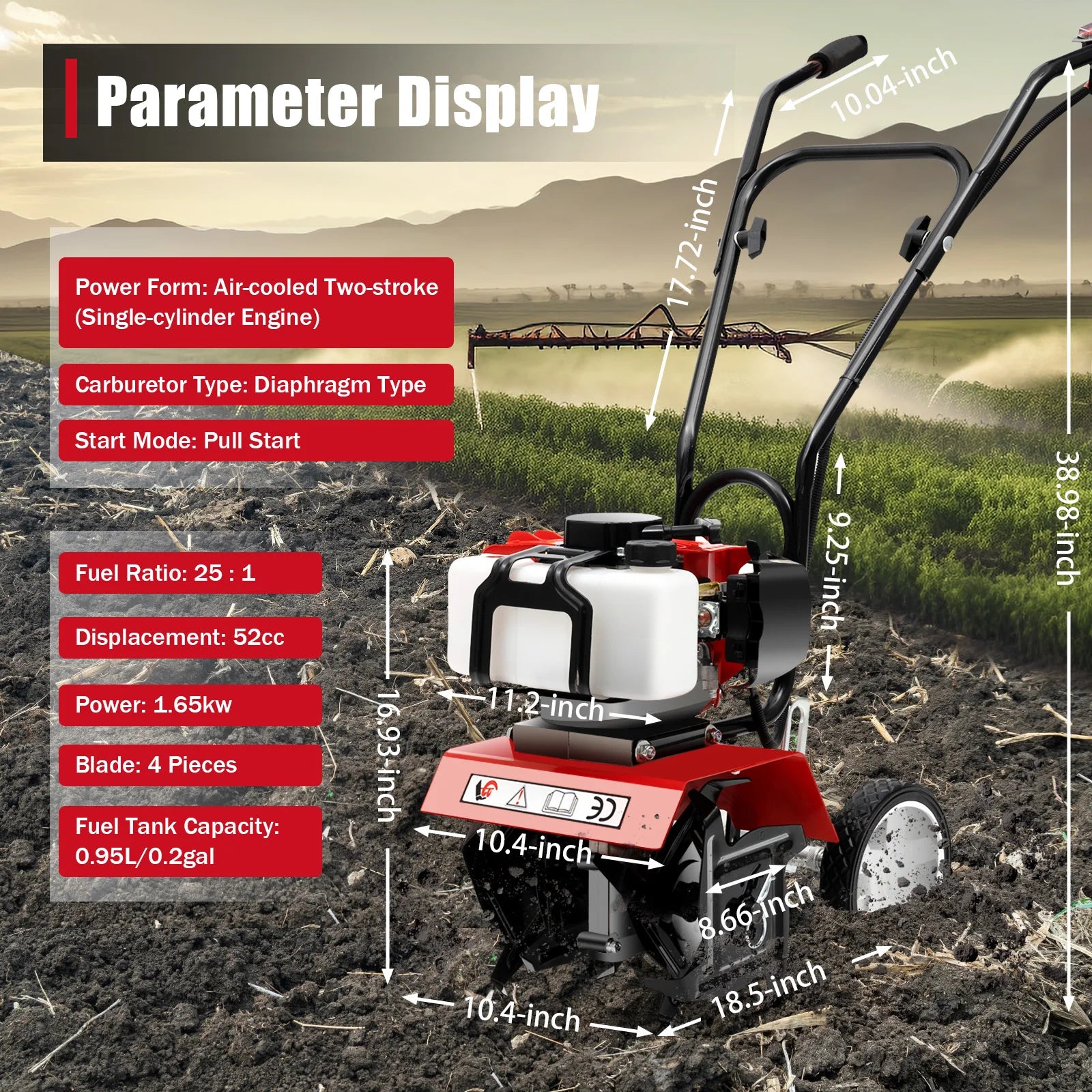

Product Size: 47*25.5*99cm/ 18.5*10.04*38.98inch

Engine Height: 21cm/8.27inch

Individual Operation Bar Length: 94cm/37inch

Fuel Tank Capacity: 0.95L/0.2gal(UK), 0.25gal(US)





Product Features

1. Large power engine, longer service life

2. Wide range of application

Cultivated land reclamation is easy to handle, and various farming activities are easy to deal with

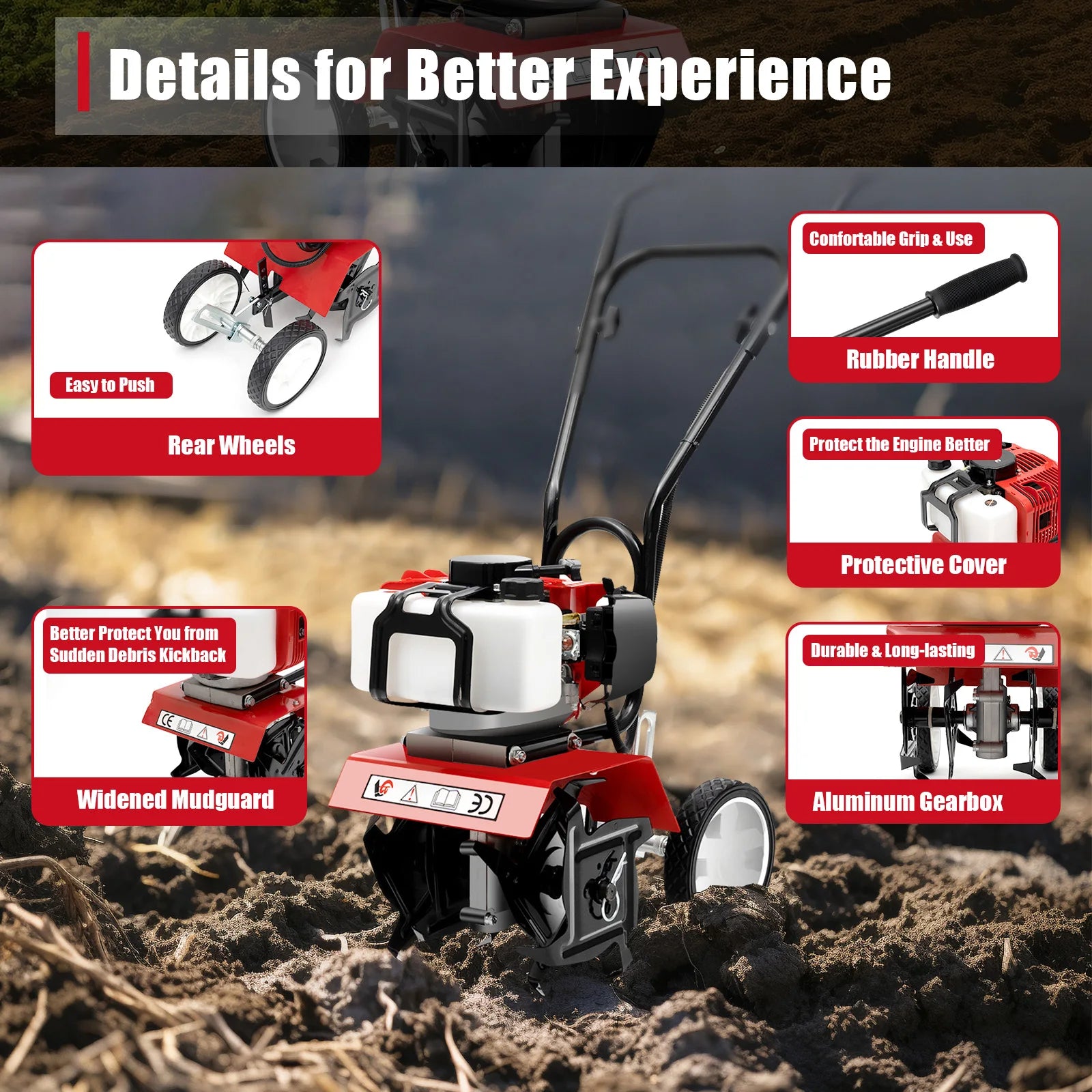

3. Rear wheel of ripper, humanized design, convenient work and easy operation

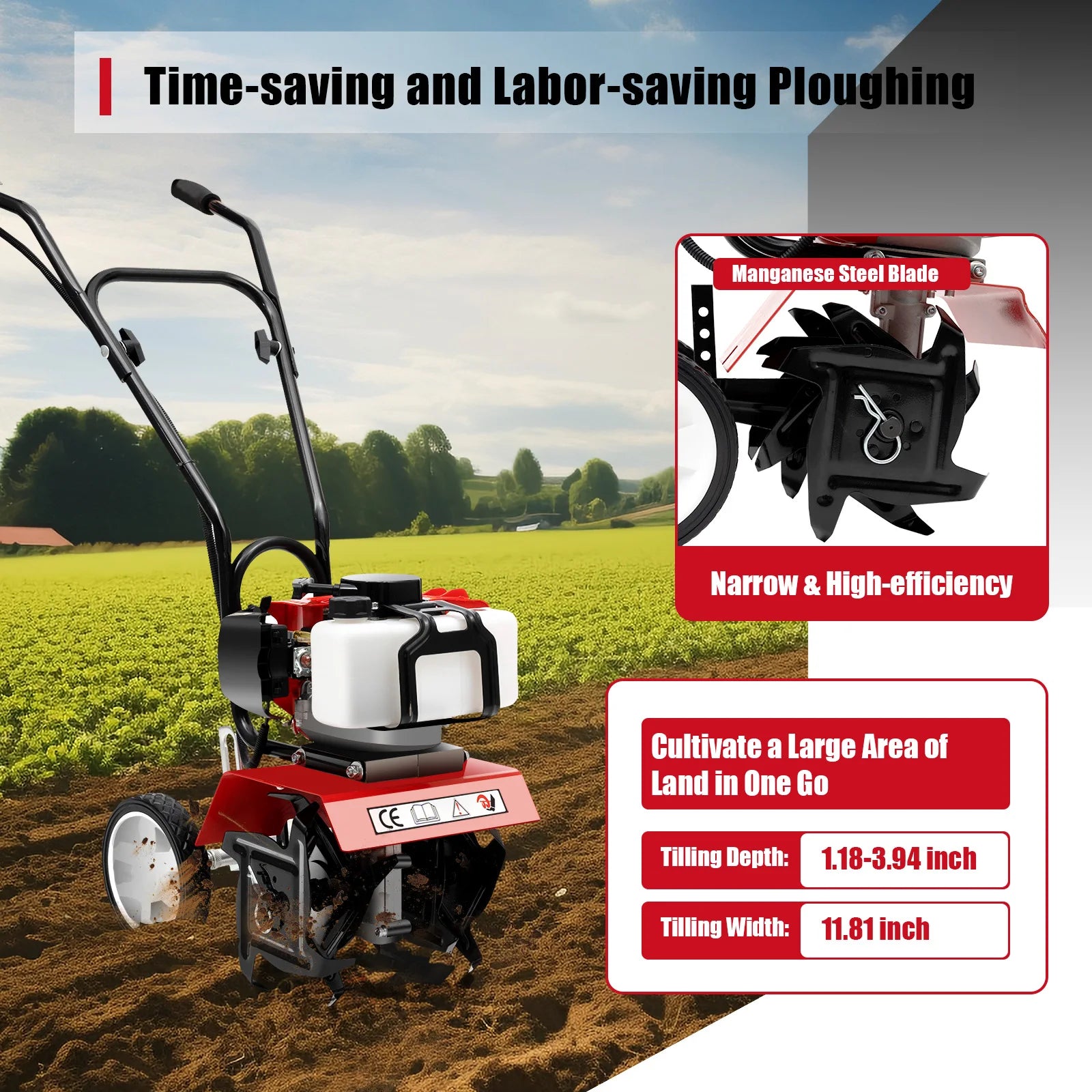

4. Manganese steel ripper: narrow knife design, suitable for field operations, improve work efficiency, save time and effort

5. Widened mudguard: effectively prevent mud splashing during operation

6. Thick tires: thick rubber tires, durable and not easy to age

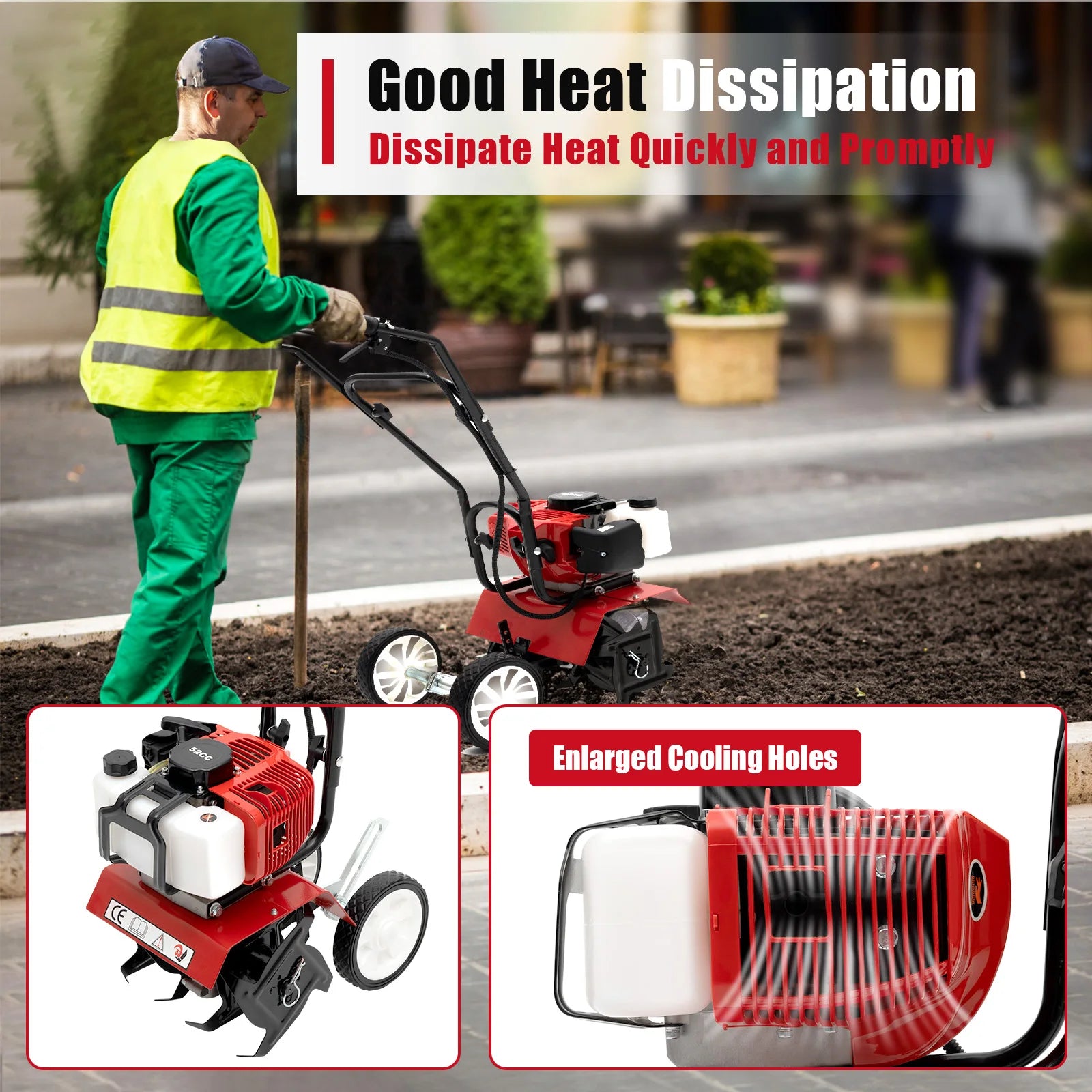

7. Efficient heat dissipation, stable work

8. Strengthen the anti-collision bar: strengthen the protection, better protect the engine

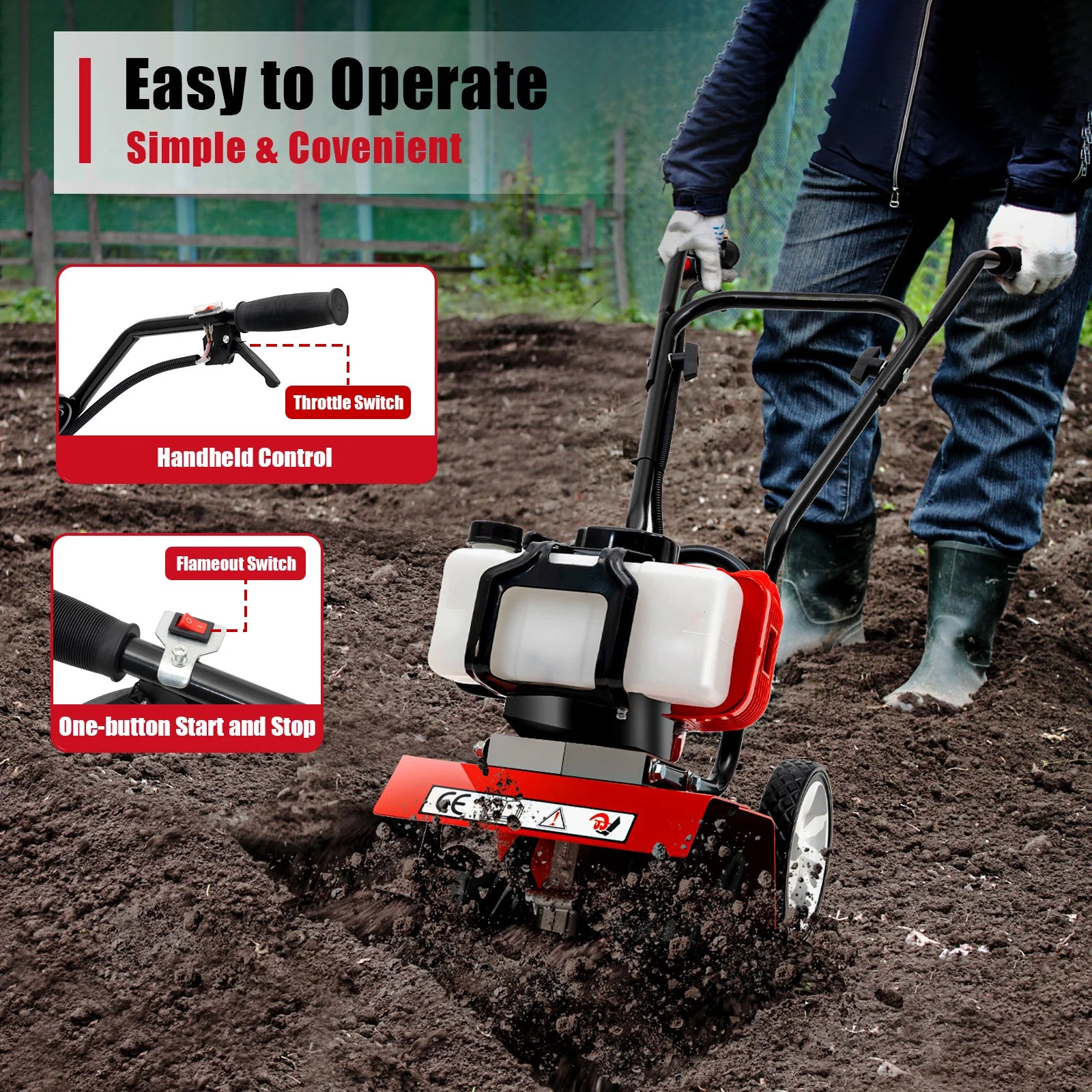

9. Hand-held control, one-button start and stop



One-hand throttle switch and flameout switch; one-hand clutch and two hands cooperate to control the machine, convenient and simple operation.



Customer notice:

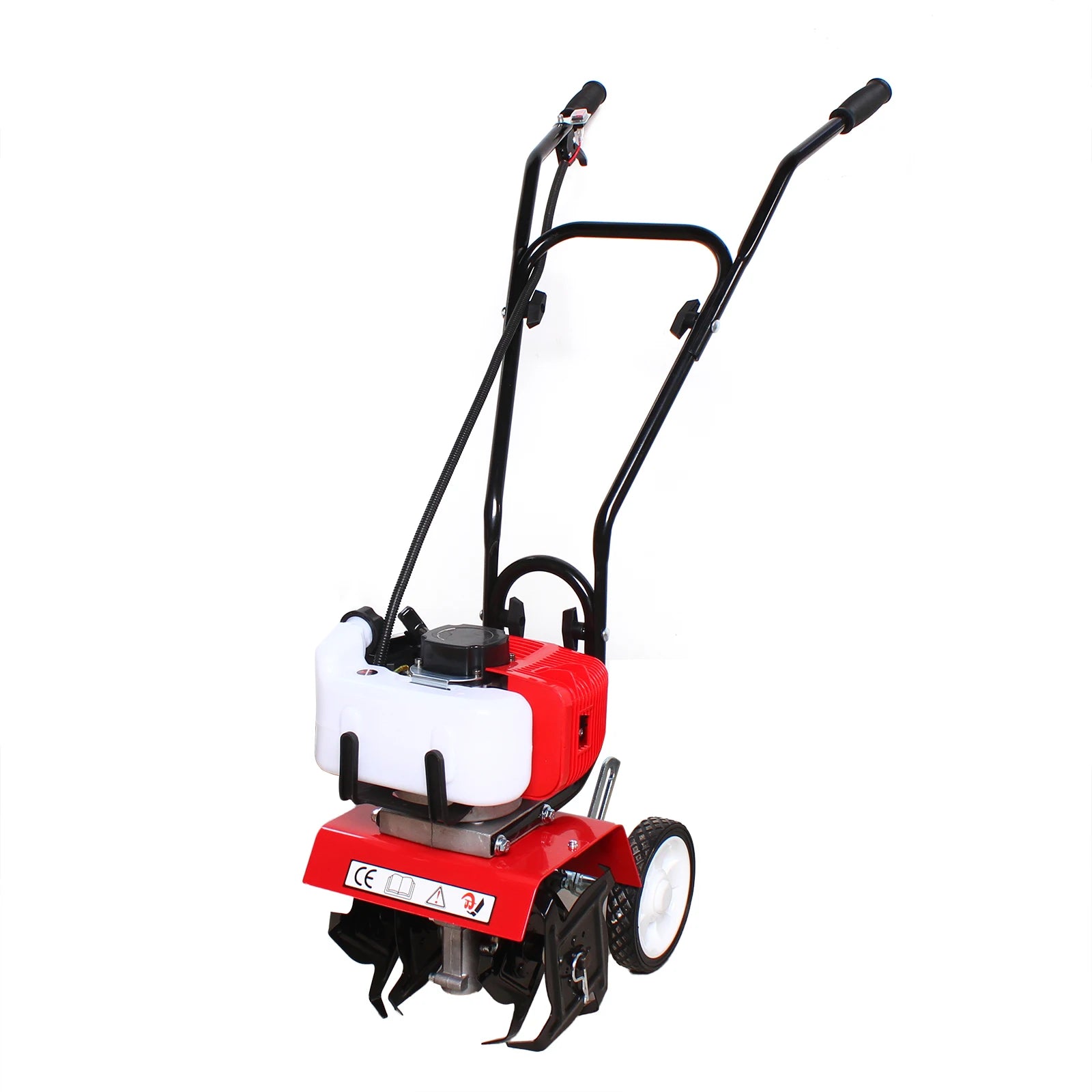

This gas-powered mini cultivator is a high-quality, powerful machine.

It was not assembled when it was shipped, but it was assembled in about 5 minutes without any tools to assemble it.



packing list:

1 x Mini cultivator
